MODELDOOR TYPEWALLLEAFLOCKCASE / LEVERHINGE / TRACKSPECIAL
oneplane™ Frameless Swing FS1
Frameless Swing

Up to 157'' (4000 mm)

Universal solution for Push-In and Pull-Out with same frame

Single version

Room-high version

Double version

Door - Fixed Panel above configurations available
1/2'' drywall

5/8'' drywall

12.5 mm european boards

15mm european boards (e.g. Fermacell)

minimal wall thickness 4''

no maximum wall thickness
2'' (50 mm) tubular core or honeycomb core

primed

259 matt and gloss lacquer colors

10 wood veneers

3 cement effect finishes
Magnetic lockcase

84 Levers in 30 finishes

Touch-to-Open in 4 finishes
3D concealedReversible frame

Pre-hung

50 mm (2'') doors

Soft-close

Touch to open

Digital locking

Available with luxury features not available in other frameless products

Works with all flush baseboards
oneplane™ Co-planar Swing MR3
Co-planar Swing

Up to 96'' (2438 mm)

Flush Push-In and Pull-Out configurations

Single version

Double version
maximum wall thickness 15.5''2'' (50 mm) tubular core or honeycomb core

primed

259 matt and gloss lacquer colors

12 wood veneers
Magnetic lockcase

84 Levers in 30 finishes
3D concealedHandcrafted

46 mm (1.8'') doors

Matching oak baseboard

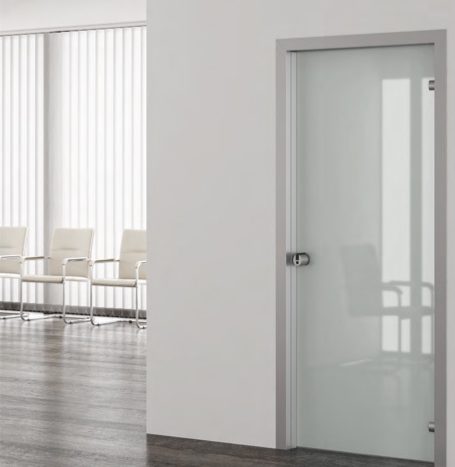

oneplane™ Framed Glass AL5
Framed Glass

Up to 157'' (4000 mm)

Single version

Double version

Door - Fixed Panel configurations
6 mm glass

Laminated

Tempered

Transparent

Grey tones

Bronze tones
Aesthetic integrated handles

Lockcases for offices available


Pivot

Sliding

Soft-close hinges and sliding door tracks

Auto-stop hinges
Also used for shower enclosures

Suitable for residential towers and small offices

MODELDOOR TYPEWALLLEAFLOCKCASE / LEVERHINGE / TRACKSPECIAL
oneplane™ Frameless Pocket FP1
Frameless Pocket

Up to 157'' (4000 mm)

Single version

Double version
1/2'' drywall

5/8'' drywall

15 mm european boards (e.g. Fermacell)

finished wall thickness 5.75''
1 3/4'' (45 mm) tubular core or honeycomb core

1 5/8'' (40 mm) solid-core or tubular core

primed

259 matt and gloss lacquer colors

10 wood veneers

3 cement effect finishes
Privacy

Edge pull

Lever: open market

Push-to-open technology
up to 260 lbs

soft-close

synchro-close
Accepts 1/2'' drywall

Accepts 5/8'' drywall

Carries doors up to 260 lbs

Stopper and door leaf can be installed after wall closed

MODELDOOR TYPEWALLLEAFLOCKCASE / LEVERHINGE / TRACKSPECIAL
oneplane™ Anodized Series LN1
Anodised Aluminum Jamb

Up to 118'' (3000 mm)

Single version

Double version

Sliding version
minimal wall thickness 2.75''

maximum wall thickness 10.4''
1.75'' (44 mm) tubular core or honeycomb core

primed

259 matt and gloss lacquer colors

10 wood veneers
Magnetic lockcase

90 Levers in 30 finishes
BarrelMagnetic lockcases

Colored jamb

Unique, modern aesthetic

MODELSTAIR TYPETREAD/LANDINGRAILINGSSPECIAL
STEEL
Stringer

Tread variable
Massive wood, Safety Glass, other optionsSteel/Glass, Full Glass
TR280 ILLUMINATED
Stringer 1/2'' or 2.5''

Tread variable
Safety Glass, white, coloured, etc.Framed Glass

Full Glass

Handrail on wall
Amazing integrated lighting in treads
TR280 GLASS
Stringer 1/2'' or 2.5''

Tread variable
Safety Glass, white, coloured, etc.Framed Glass

Full Glass

Handrail on wall
The least expensive glass staircase you will ever find
TR280 STONE
Stringer 1/2'' or 2.5''

Tread variable
Safety Glass
Natural stone, black slate, granite,
Massive Wood, oak, beech, etc.
Aluminum
Naked (you supply step material)
Framed Glass

Full Glass

Handrail on wall
Natural stone or massive wood in our exclusive anodised frame
TR260
Stringer 1/2'' or 2.5''

Tread 10.25''
High-grade Aluminum, highly anodised with 21 mU. Virtually indestructible.
Framed Glass

Full Glass

Handrail on wall
Unique wing shaped steps
TR240
Stringer 1/2'' or 2.5''

Holm 4''

Tread 9.5''
High-grade Aluminum with anti-skid over entire treadFramed Glass

Full Glass

Handrail on wall
Engineering floating wonder
TR300
Stringer 1/2''

Tread 11.8''
High-grade Aluminum
Framed Glass

Full Glass

Handrail on wall
Huge width and strength for public buildings
