This page will help you design and configure our high-end doors.   Please refer to the Production Form for additional details.



DOOR NUMBER
A number or the door name



PRODUCT
FS1 1/2″ – frameless swing door for 1/2″ drywall, 2″ leaf
FS1 5/8″ – frameless swing door for 5/8″ drywall, 2″ leaf
FP1 – frameless pocket for 1/2″ drywall, 1 5/8″ leaf
FSL1 – frameless slide, 2″ leaf
FD1 – frameless duo, 2″ leaf
FV1 – frameless pivot, 2″ leaf
FB1 – frameless bypass, 1 5/8″ leaf



















LEAF CORE

solid (extreme weight for banks, fire-rated or ultra quiet rooms. also used when slots for HVAC are milled in leaf)
tubular (standard used in luxury homes)
honeycomb (lighter weight for closets or ancillary rooms)

Comparisons

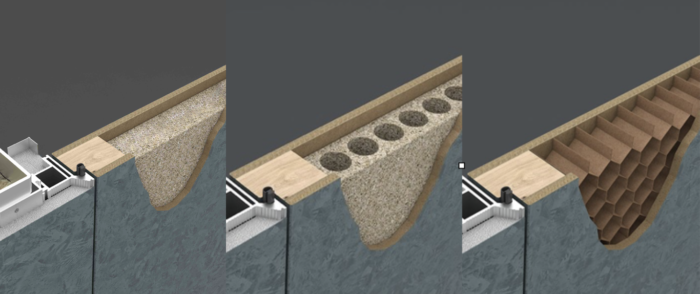

solid core: 32 dB, 36 x 96″ door weighs approx. 187 lbs
tubular core: 30 dB, 36 x 96″ door weighs approx. 136 lbs
honeycomb core: 26 dB, 36 x 96″ door weighs approx. 80 lbs



















WIDTH
door leaf width for FS1, FD1, FV1 or clear opening width for FP1, FSL1, FB1
always refer to the planning documentation to determine door leaf, frame size and rough opening



HEIGHT
door leaf height for FS1 or clear opening height for FP1
always refer to the planning documentation to determine door leaf, frame size and rough opening



TYPE
single, double room, double closet, ceiling-high



COLOUR LEAF
primed
RAL9016 matt (standard white)
Choose from 256 RAL colors
also provide finish: matt (10% gloss), supermatt (0% gloss), textured (0% gloss), high-gloss (90% gloss)
Oak veneers, provide number and horizontal or vertical veneer
American walnut, horizontal or vertical veneer
FINISHES



COLOUR FRAME
RAL9016 (standard white)
Choose from 256 RAL colors
wood effects, state name



OPENING DIRECTION
left or right – use pictures at bottom of Production Form for orientation



QUANTITY
number of this type and dimension of door



GASKETS
white or black for FS1
black for FP1
gaskets are pre-installed in the door frames to increase the acoustic performance



LOCKCASE
passage (no lock, only levers)
room key (skeleton key)
security key (normal coded key, with or without our cylinder)
privacy (turnknob and emergency release)

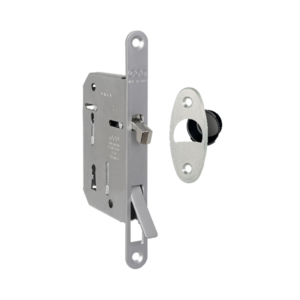

POCKET lock with edge pull

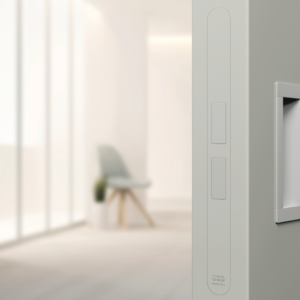

TOUCH: no handle needed, but pull needed on pull side of door. other companies call this type of lockcase NOHA (NO HAndle)

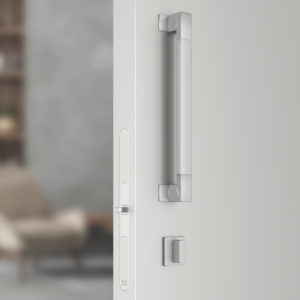

TOUCH & CLOSE: no handle needed, but pull needed on pull side of door, with integrated privacy function on both sides of the door

















EASY (magnets used for double closets to keep closed without a lockcase)























HINGE AND LOCKCASE COLOUR
silver
white
black
self-closing (also state color)



DOOR LEVERs, PULLS, MILLED HANDLES
select from www.architectural-door-hardware.com
also state finish, e.g. L1605 matt black
privacy locks will automatically be delivered when ‘Lockcase’ is privacy
milled handle Alpha (long along edge of door)
milled handle Vega (oval)



COMMENTS
anything missing or special configurations
drop-down seal
special door designs e.g. paneled look
glass inserts
fixed panels above door
HVAC millings
